About the Project

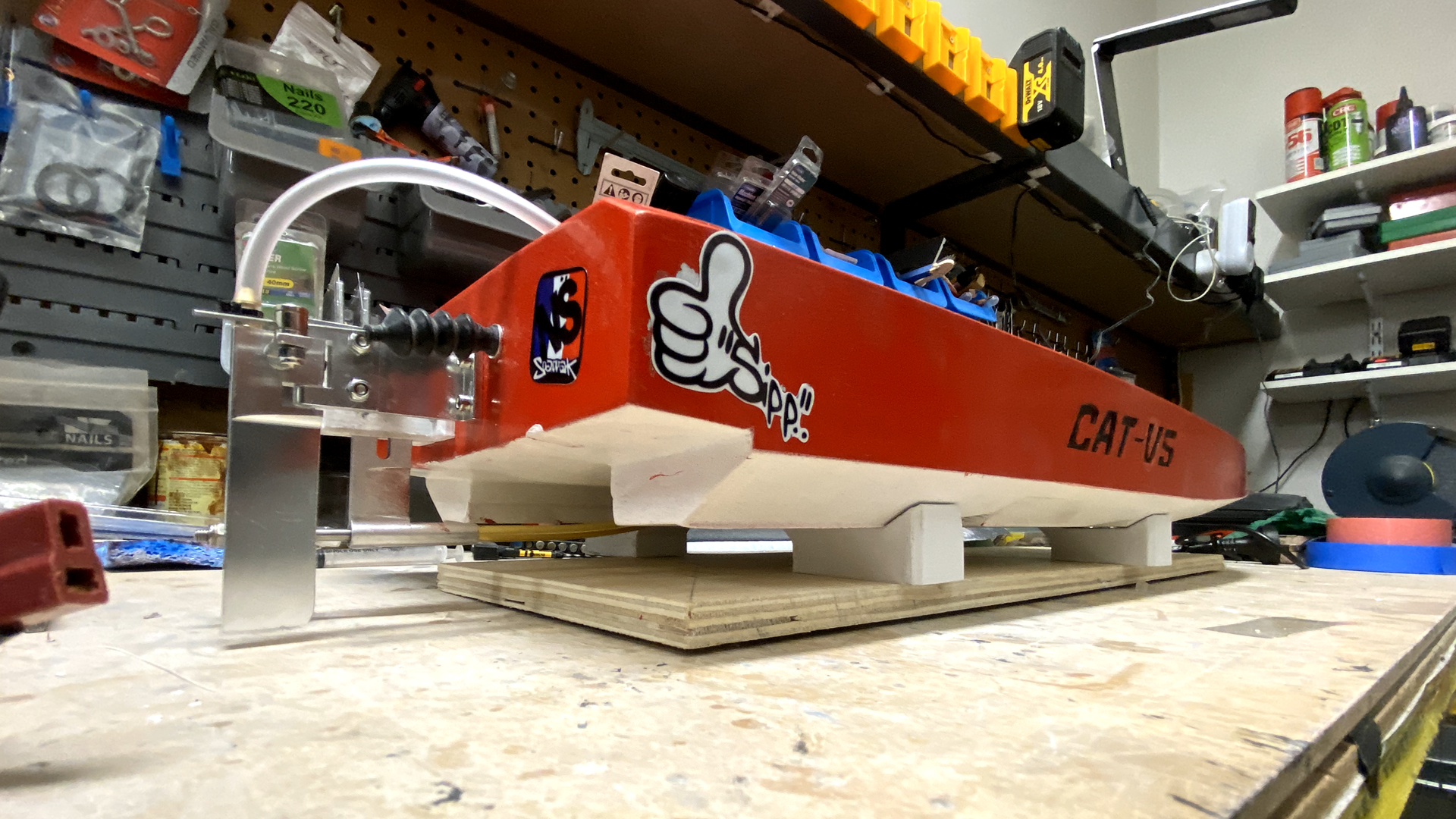

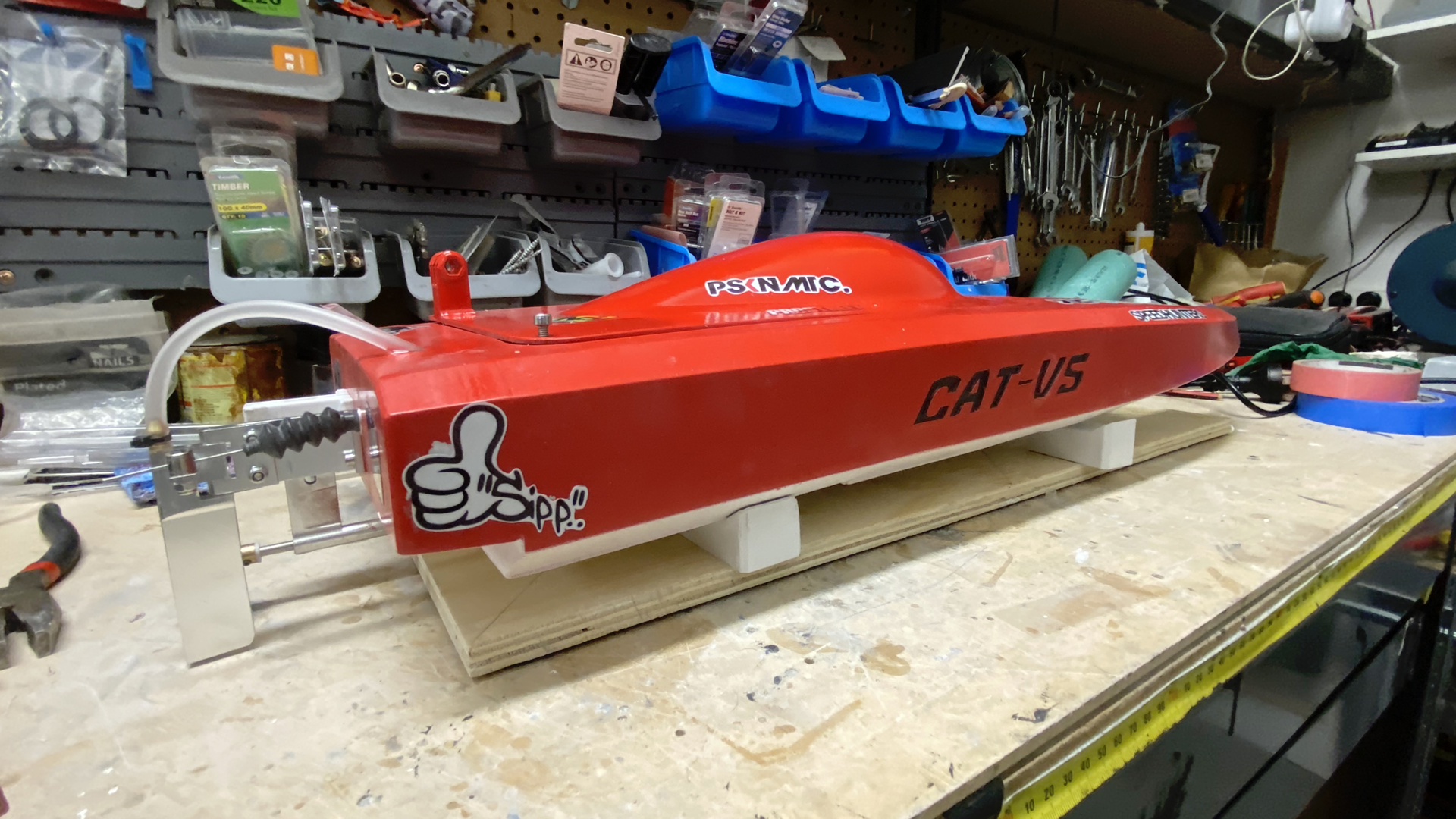

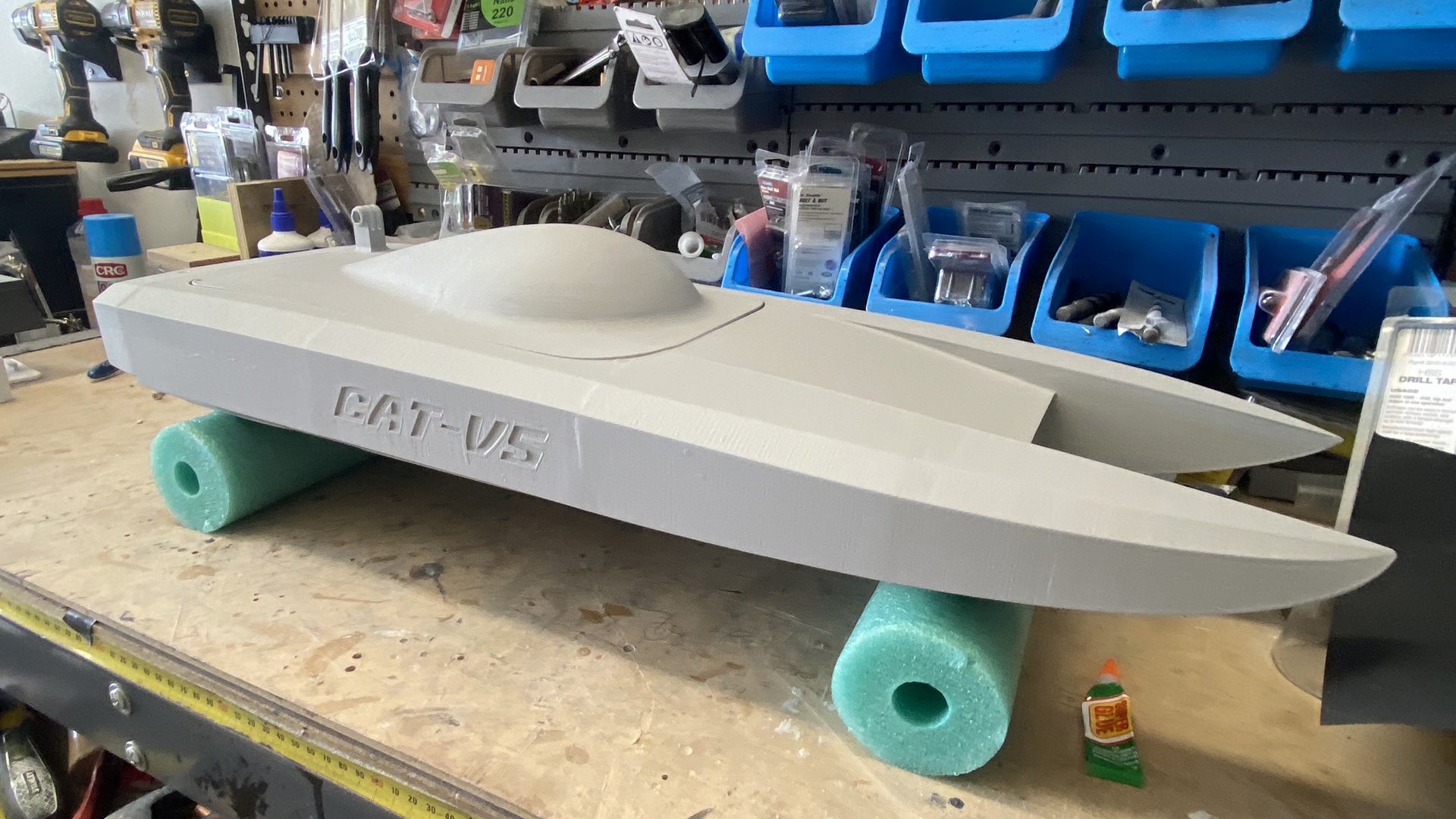

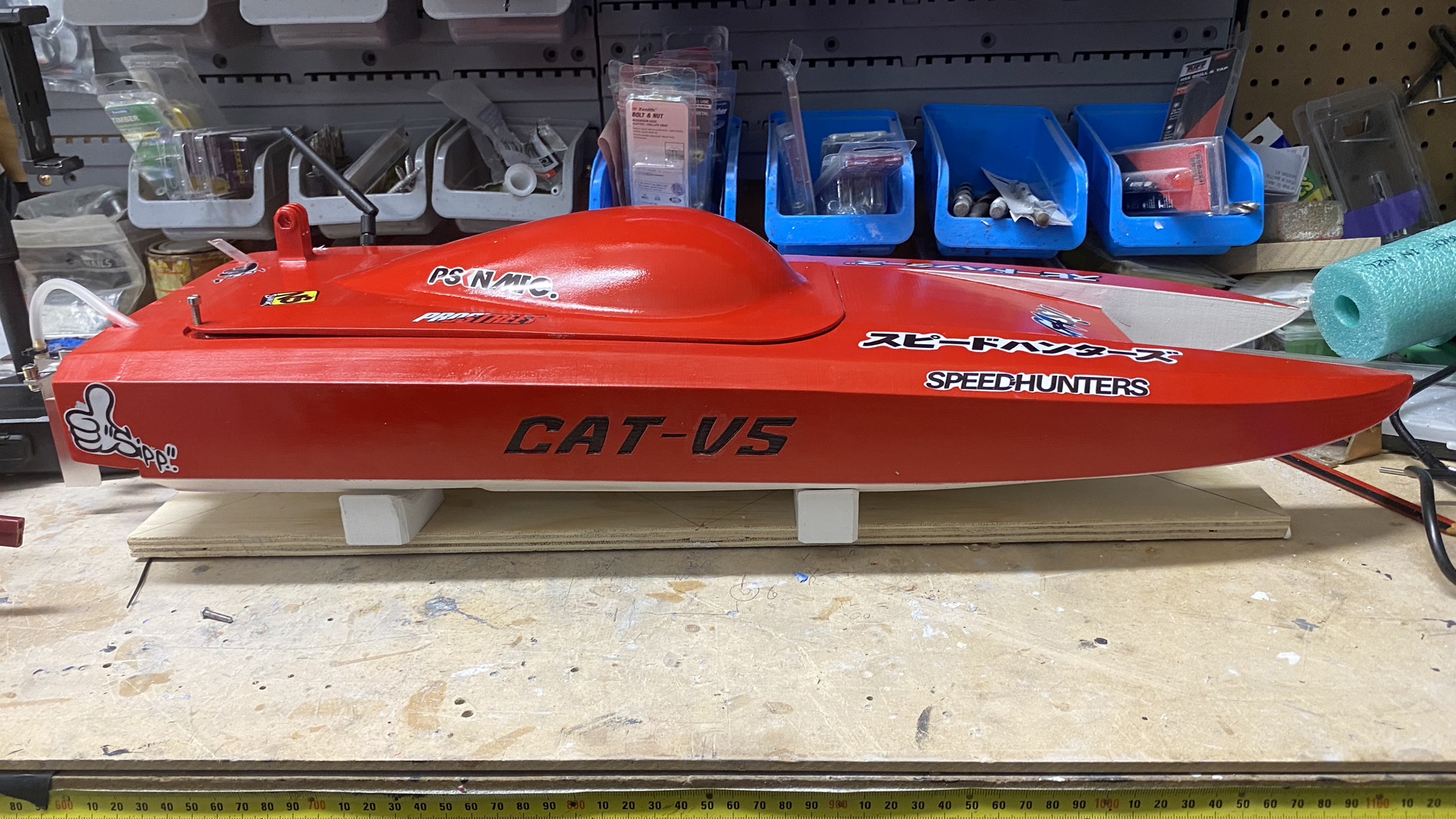

This is the fifth and final version of my RC catamaran. This time I put more thought into assembly so each section has tabs that slot into the next making alignment super easy for gluing. On my own build I used body filler to smooth out seams and imperfections before painting. Watch the YouTube video to see that process.

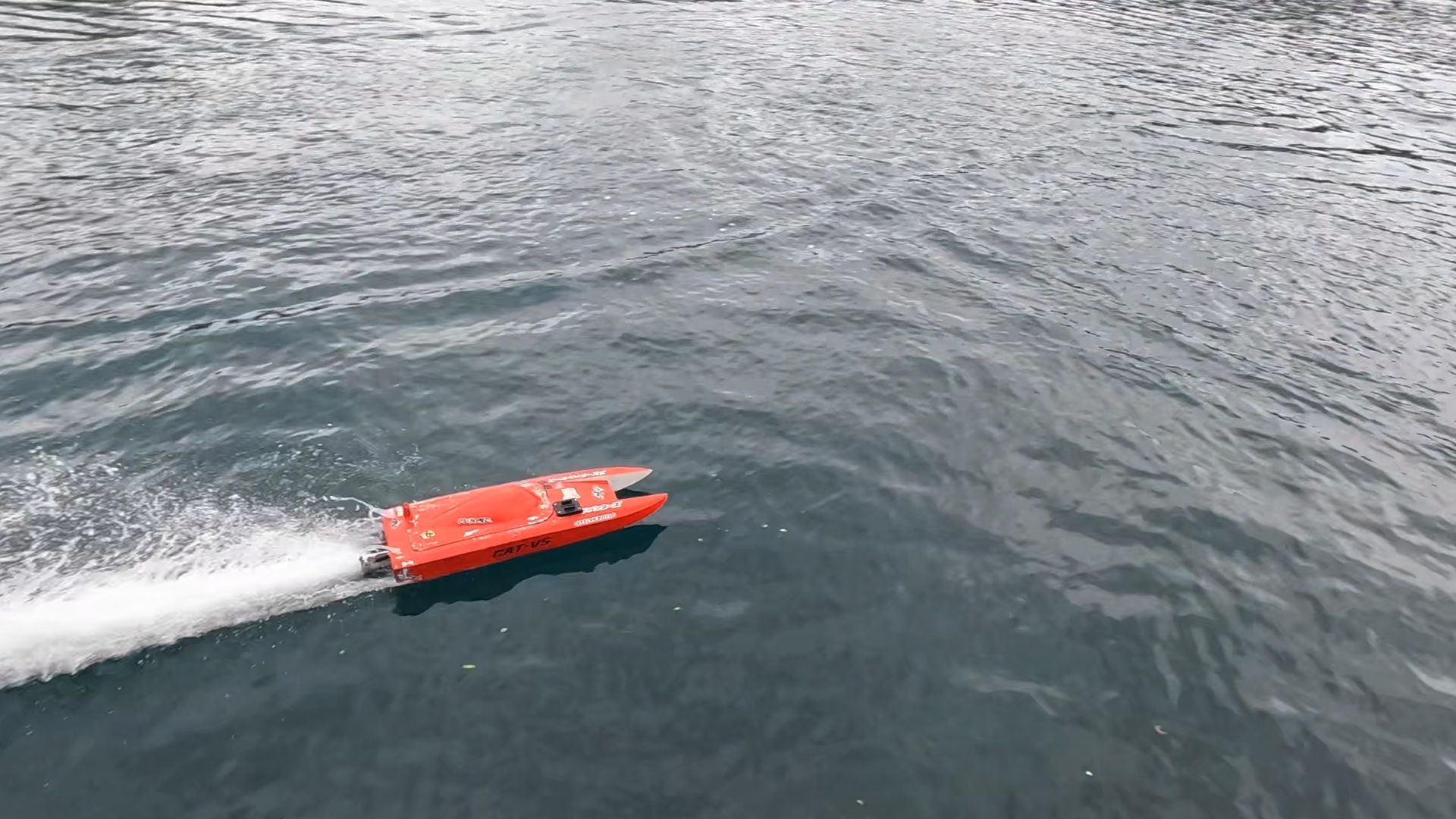

With my motor, ESC and prop setup, I managed to reach 86 km/h on a single 4S LiPo.

Which STL files to use

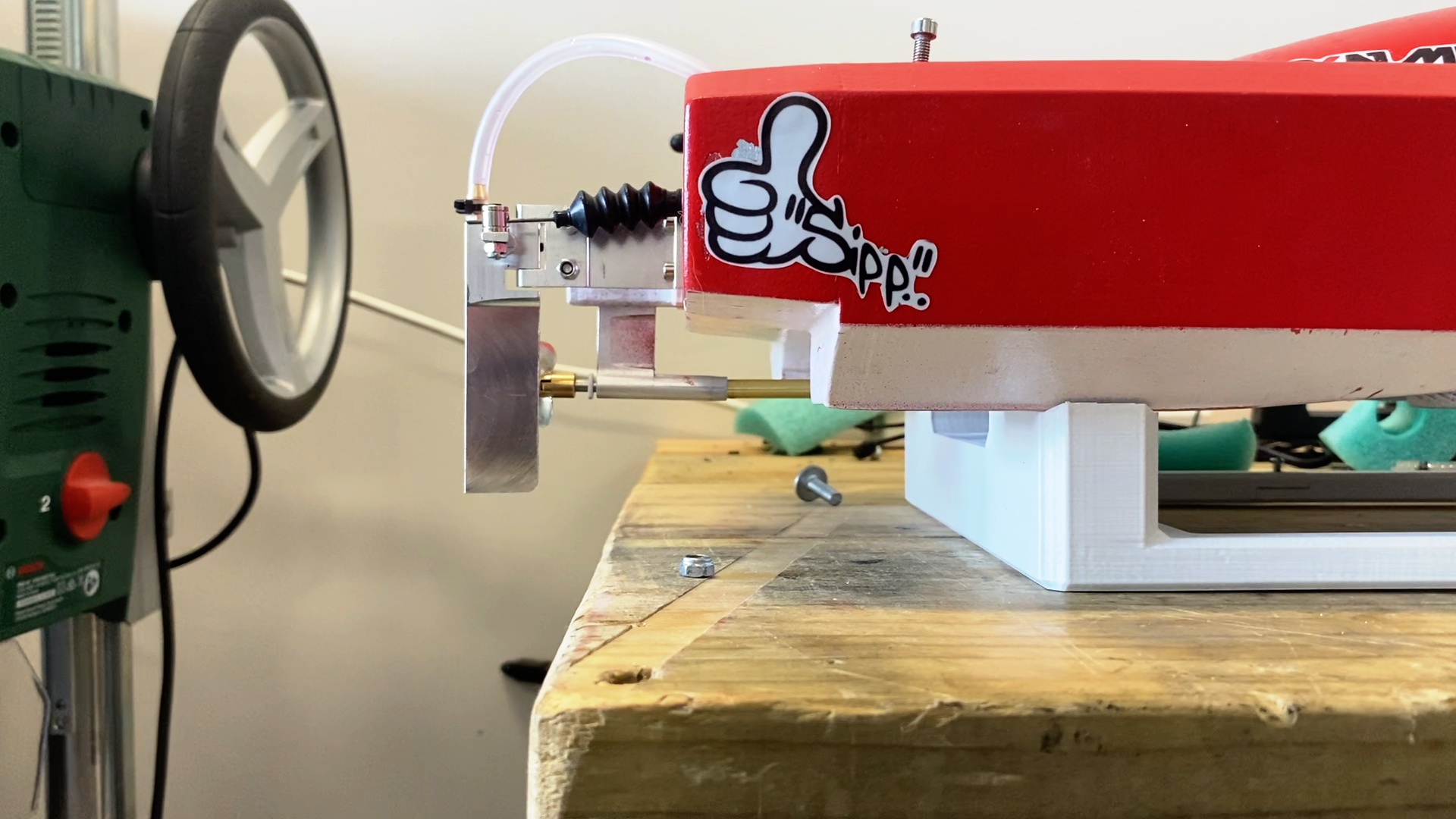

"Hull parts" folder: Some of these (Stern, Middle Back & Transom) include mounting holes specifically for the parts in the parts list. Use these if you're running the same motor and rudder setup as me.

"No holes" folder: use these alternates if you want to glue in your own motor mount or set things up differently.

Assembled size

• Length (excluding rudder) - 660mm
• Width (hull) - 260mm
• Height (including lid) - 120mm

More notes

• The G-code files are sliced for an Ender 3 V3 SE.
• I recommend starting with the CAT-V5 Slicer 3MF file.
• The lid seal is optional. I printed mine in TPU.
